SmartStageâ„¢ Ecosystem: Precision Built-In

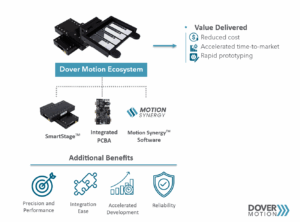

The SmartStage™ ecosystem is Dover Motion’s integrated platform of linear motor stages that combine high-performance motion, encoder feedback, and a built-in controller.
Engineered for imaging and diagnostic systems, SmartStage™ stages deliver nanometer-level precision, exceptional stiffness, and seamless multi-axis integration. Simplify motion design and accelerate prototyping while achieving faster, more reliable performance across every axis.
SmartStageâ„¢ Products
The SmartStage™ XY linear positioning stage offers high precision and includes an embedded controller inside the stage.
| wdt_ID | Travel | 50 - 200 mm |
|---|---|---|
| 1 | Accuracy | ≤ 10 μm |
| 2 | Repeatability | 0.8 μm |
| 3 | Payload | 10 kg |

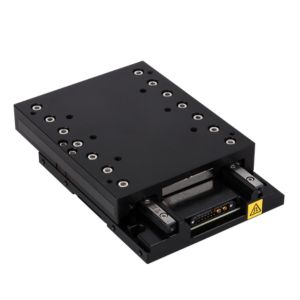

The SmartStage™ linear stage is our single axis stage with a built-in controller. It is available in a range of travel sizes and options.
| wdt_ID | Travel | 50 - 200 mm |
|---|---|---|
| 1 | Accuracy | ≤ 10 μm |
| 2 | Repeatability | 0.8 μm |
| 3 | Payload | 10 kg |
The SmartStageâ„¢ Z-50 provides a unique combination of travel distance and precision for vertical Z axis stage applications.
| wdt_ID | Travel | 50 mm |
|---|---|---|
| 1 | Resolution | 5 nm |
| 2 | Accuracy | 10 μm |
| 3 | Repeatability | .8 μm |
The SmartStage™ Open Frame XY is the first open aperture linear motor stage with an embedded controller physically integrated inside the stage.
| wdt_ID | Travel | 115 x 75 mm |
|---|---|---|
| 1 | Accuracy | ≤ 10 μm |
| 2 | Repeatability | 0.8 μm |
| 3 | Payload | 10 kg |
The SmartStage Shuttle is a long travel linear stage, which provides linear motor precision and throughput for XY stage applications.
| wdt_ID | Travel | 200 - 500 mm |
|---|---|---|
| 1 | Accuracy | 5 μm |
| 2 | Repeatability | 1.2 μm |
| 3 | Payload | 10 kg |
The XY Monolithic positioning stage is a linear motor stage with an integrated controller, delivering superior stiffness and precision in a low-profile XY form factor.
| wdt_ID | Travel | 50 - 75 mm |
|---|---|---|
| 1 | Accuracy | 12 μm |
| 2 | Repeatability | 0.8 μm |
| 3 | Payload (kg) | 10 kg |

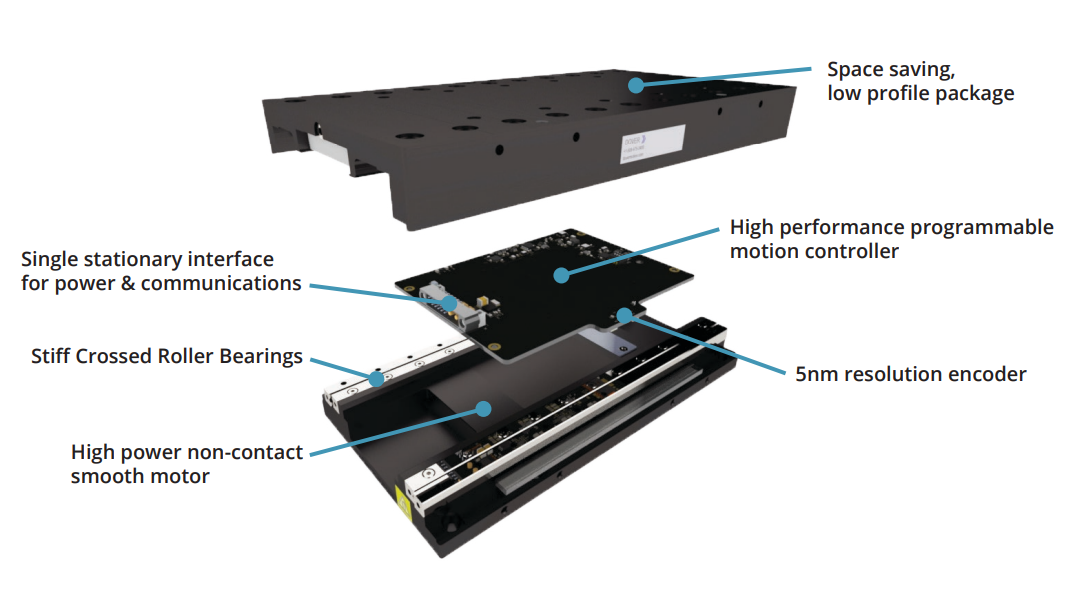

SmartStage Features
