Precision Motion Stages for Fiber Optic Alignment
Accelerate throughput and maximize coupling efficiency with high-performance multi-axis stages
Nanometer-Scale Motion Solutions for Fiber Optic and Silicon Photonics Alignment
As the industry moves toward Silicon Photonics (SiPh) and higher-density optical interconnects, alignment tolerances have shrunk to the nanometer level.
In modern manufacturing, manual alignment is no longer viable for high-volume production. Automated photonics alignment requires a combination of high-speed motion, sub-micron repeatability, and intelligent search algorithms to ensure peak coupling efficiency in seconds rather than minutes.
The Critical Attributes of Photonics Alignment:
There are three critical factors that define success in automated fiber alignment: Resolution, Stability, and Throughput. Dover Motion partners with photonics instrument developers to provide XY and multi-axis solutions that excel in:
- Sub-Micron Resolution: Achieving peak coupling requires the ability to make incremental moves as small as 5–10 nanometers.
- Long-Term Stability: Once peak power is found, the stage must maintain that position without "drift" during the bonding or curing process.
- High Dynamic Throughput: Reducing the time spent on "Area Scans" and "Gradient Searches" directly impacts the cost-per-device in semiconductor and transceiver manufacturing.
Alignment Methodologies We Empower:
- Area & Spiral Scanning (First Light)
The "First Light" problem involves finding the initial signal when the fiber and waveguide are completely misaligned. This requires a rapid 2D area scan or spiral search. Dover’s SmartStage™ XY platforms utilize high-speed linear motors to execute these patterns with minimal vibration, allowing sensors to detect the first sign of coupling faster.
- Gradient Search & Peak Tracking
Once a signal is detected, the system must "climb the hill" to find the peak power point. Our motion controllers support high-frequency triggering and real-time feedback loops, enabling the system to track the peak even if the component shifts slightly during UV curing.
- Multi-Channel Alignment

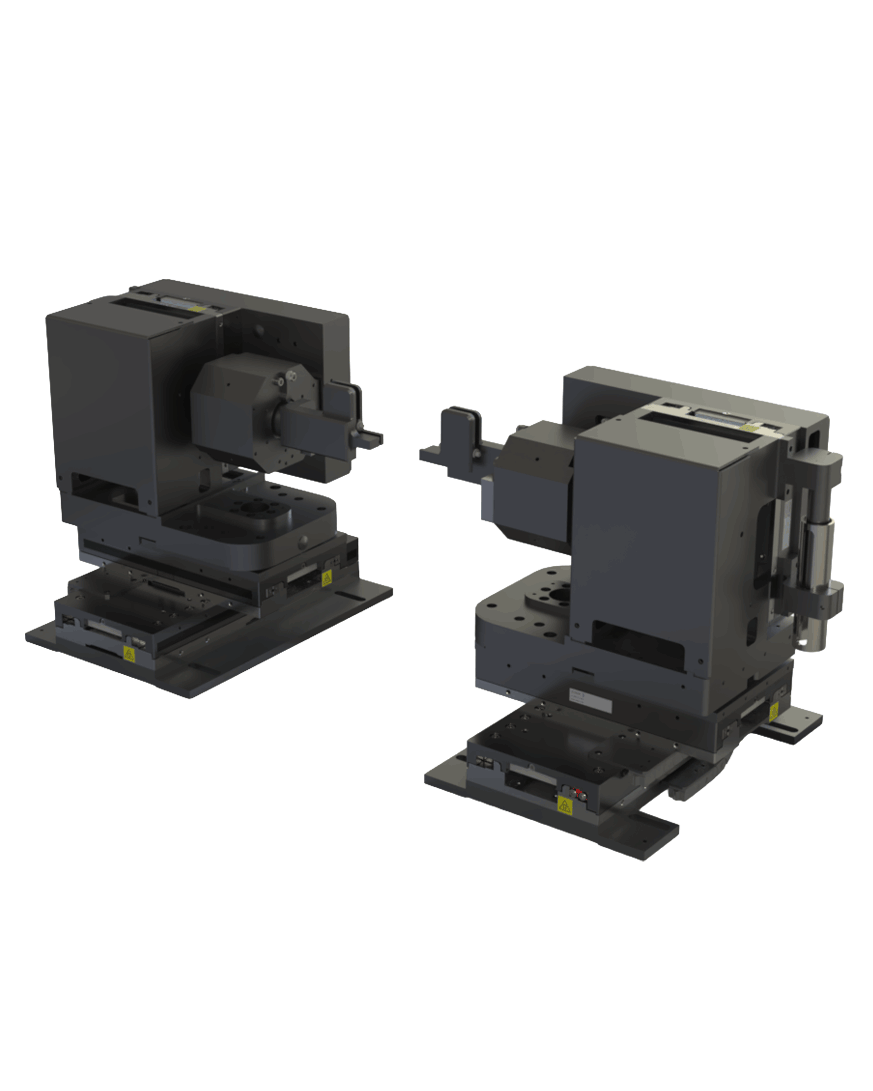

For multi-fiber arrays or Silicon Photonics wafers, alignment must happen across 6-degrees of freedom (XYZ + Tip/Tilt/Yaw). Dover Motion’s integrated multi-axis assemblies ensure that all channels reach optimal coupling simultaneously, preventing "angular misalignment" that causes power loss across the array.
Related Products:
SmartStageâ„¢ XY
The SmartStage™ XY linear positioning stage offers high precision and includes an embedded controller inside the stage.
| wdt_ID | Travel | 50 - 200 mm |
|---|---|---|
| 1 | Accuracy | ≤ 10 μm |
| 2 | Repeatability | 0.8 μm |
| 3 | Payload | 10 kg |
AGâ„¢
The Airglide™ air bearing stage design uses precision stiff air bearings for large payloads.
| wdt_ID | Travel | 150 - 400 mm |
|---|---|---|
| 1 | Accuracy | 4 μm TIR |
| 2 | Repeatability | < ± 0.4 μm |
| 3 | Payload | 40 kg |
Resources
Fiber Alignment Fundamentals
Meet the integrated system that delivers faster, more accurate fiber optic alignment than any algorithm-based approach.
Download NowModern Fiber Alignment Platform Architecture
Explore the OPM-1, laser sources, and BeamFind — the sensing hardware that makes precision alignment possible.
Download NowOptical Power Measurement in Fiber Alignment Systems
Learn how Dover's dedicated analog hardware acquires optical coupling faster than conventional grid-search methods.
Download NowLaser Sources for Fiber Alignment Systems
Discover the analog servo technology that locks onto the true optical power peak in seconds, every time.
Download NowFast First-Light Acquisition in Fiber Alignment
See how Dover Motion's precision motion stages achieve the constant-velocity performance FBG production demands.
Download NowAutomating Peak Optical Alignment
Explore Dover Motion's dual-carriage stages built for the coordinated, constant-velocity motion fused fiber requires.
Download NowStep-by-Step Fiber Alignment Workflow
Understand why direct-drive stages outperform piezo, flexure, and leadscrew alternatives for photonic alignment.
Download NowWhy Choose Dover Motion?
Reduced Footprint: The SmartStageâ„¢ series features embedded controllers, saving valuable space in compact photonics assembly workstations.
Direct Drive Performance: Unlike screw-driven stages, our linear motor stages eliminate backlash and friction, ensuring "move-and-settle" times are measured in milliseconds.
Vacuum & Cleanroom Compatibility: Many photonics processes occur in controlled environments; our stages are available in configurations optimized for high-vacuum and ISO-rated cleanrooms.
Advanced Control Capabilities: Leveraging our Motion Synergyâ„¢ API and sophisticated control algorithms, we enable precise motion profiles, high-speed triggering, and advanced synchronization.
Integrated Solutions: From individual components to complete multi-axis systems, we provide comprehensive motion solutions, simplifying integration and accelerating time to market.
