Precision Motion Stages for Bioprinting
Solving Critical Motion Challenges in Bioprinting
Dover Motion’s precision motion systems deliver the responsiveness, accuracy, and easy integration for the dynamic world of bioprinting. Our compact and customizable XY, Z, and multi-axis stages simplify integration, enhance positioning precision, and streamline system development—empowering bioengineers and OEMs to innovate with confidence.
From Standard to Custom
Dover Motion offers standard and custom motion solutions designed to meet the demands of bioprinting, including:Â
-
Nano-Level Precision: for precise placement of cells and biomaterials with exceptional repeatability
-
Ultra-Smooth Motion Control: minimizes shear and protects cell viability during deposition
-
Compact, integration-ready designs to simplify your system architecture
-
Scalable Configurations: from single-axis stages to multi-axis systems with an optional tip tilt option for advanced deposition patterns
Interested in Learning More?
Recommended Products:
SmartStageâ„¢ XY Monolithic Stage
The SmartStage XY Monolithic stage, is a linear motor stage in a low-profile XY form factor, with physically integrated controller, designed for precision positioning.
| wdt_ID | Travel | 50 - 75 mm |
|---|---|---|
| 1 | Accuracy | 12 μm |
| 2 | Repeatability | 0.8 μm |
| 3 | Payload (kg) | 10 kg |

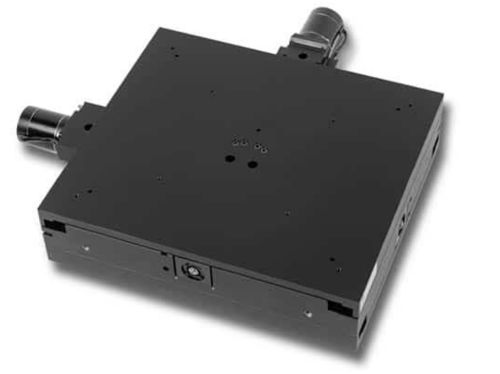

SmartStageâ„¢ XY
The SmartStage™ XY linear positioning stage, also available as a single axis, offers high precision and includes an embedded controller inside the stage.
| wdt_ID | Travel | 50 - 200 mm |
|---|---|---|
| 1 | Accuracy | ≤ 10 μm |
| 2 | Repeatability | 0.8 μm |
| 3 | Payload | 10 kg |
SmartStageâ„¢ Z-50
The SmartStageâ„¢ Z-50 provides a unique combination of travel distance and precision for vertical Z axis stage applications.
| wdt_ID | Travel | 50 mm |
|---|---|---|
| 1 | Resolution | 5 nm |
| 2 | Accuracy | 10 μm |
| 3 | Repeatability | .8 μm |
SmartStageâ„¢ Shuttle Long Travel Stage
The SmartStage Shuttle is a long travel linear stage, which provides linear motor precision and throughput for XY stage applications.
| wdt_ID | Travel | 200 - 500 mm |
|---|---|---|
| 1 | Accuracy | 5 μm |
| 2 | Repeatability | 1.2 μm |
| 3 | Payload | 10 kg |
KVâ„¢
The KV™ micro linear stage is a lead-screw-driven step motor stage with a miniature size.
| wdt_ID | Travel | 25 - 200 mm |
|---|---|---|
| 1 | Accuracy | 15 μm TIR |
| 2 | Repeatability | < ± 3 μm |
| 3 | Payload | 15 kg |
Why Choose Dover Motion?
Unmatched precision: Achieve high-accuracy motion control with the stability and responsiveness needed for bioprinting processes.
Customizable Solutions: We partner closely with OEMs to develop custom XY, Z, and multi-axis motion stages, designed to meet your motion requirements and system layout.
Smooth Startup and Quiet Operation: Optimized for low-noise, vibration-free motion that protects sensitive biological materials and creates a better lab environment.
Flexible Mounting and Footprint Options: Available in a range of configurations and sizes to accommodate tight space constraints and modular system designs.
Advanced Motion Control: Powered by our Motion Synergyâ„¢ API software, our systems deliver smooth, coordinated motion with real-time responsiveness and precise control.
Collaborative Engineering Support: We work closely with your team to provide motion expertise, fast prototyping, and responsive guidance throughout the whole development process.
