6DOF-DD

The Dover Motion 6DOF-DD L/R sets a new standard for high precision photonic alignment. With direct drive on all six (or twelve) axes, performance greatly exceeds those of conventional stepper-gonio or hexapod designs. With servo controls built-in, bulky cabling is eliminated, with only a single stationary cable per 6DOF-DD stage stack.

Key features include:

Direct Drive on all six axes!

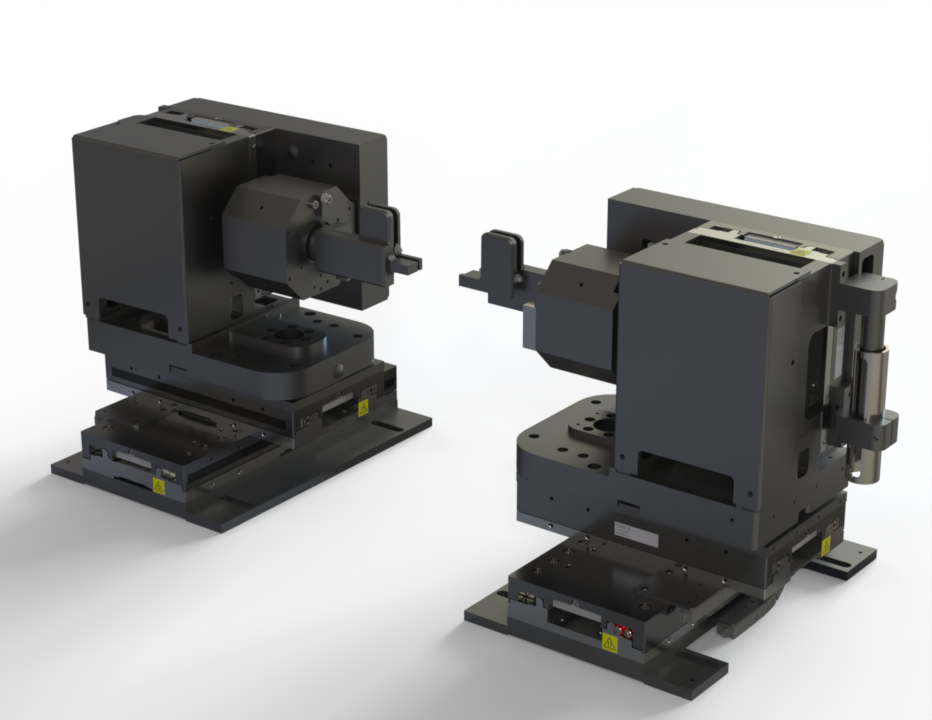

Stereo Left and Right versions for full 12 DOF alignment
Virtual Rotation Point, settable with easy to use API
Resolution: 5 nm linear; 25 micro-degrees (Theta-X and Theta-Y),100 micro-degrees (Theta-Z)
Non-contact linear and angular motors & encoders
Stiff, precise crossed roller bearings on all axes

Get Pricing

Specifications

6DOF-DD L/R Stage Specifications

Axis	wdt_ID	Travel	Max Velocity	Resolution	Repeatability 1,2,3
X (front to back)	1	150 mm	200 mm/s	5 nm	<±50 nm
Y (vertical)	2	+25/-7 mm	200 mm/s	5 nm	<±50 nm
Z (optical axis)	13	100 mm	200 mm/s	5 nm	<±50 nm
Theta-X	54	±8 deg	200 deg/s	0.000025 deg	<0.0001 deg
Theta-Y	55	±8 deg	100 deg/s	0.000025 deg	<0.0001 deg
Theta-Z	56	±190 deg	2000 deg/s	0.000100 deg	<0.0002 deg

Optical Axis Height:152 to 184 mm, via Y axis position. Home flag at 159 mm.

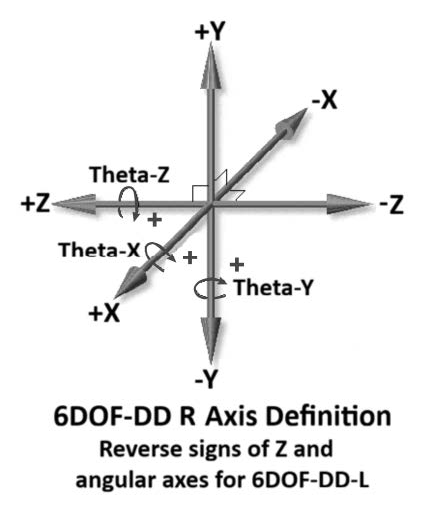

Stacking Order: Linear X : Linear Z (optical axis): Theta-Y : Linear Y (vertical) : Theta-X : Theta-Z

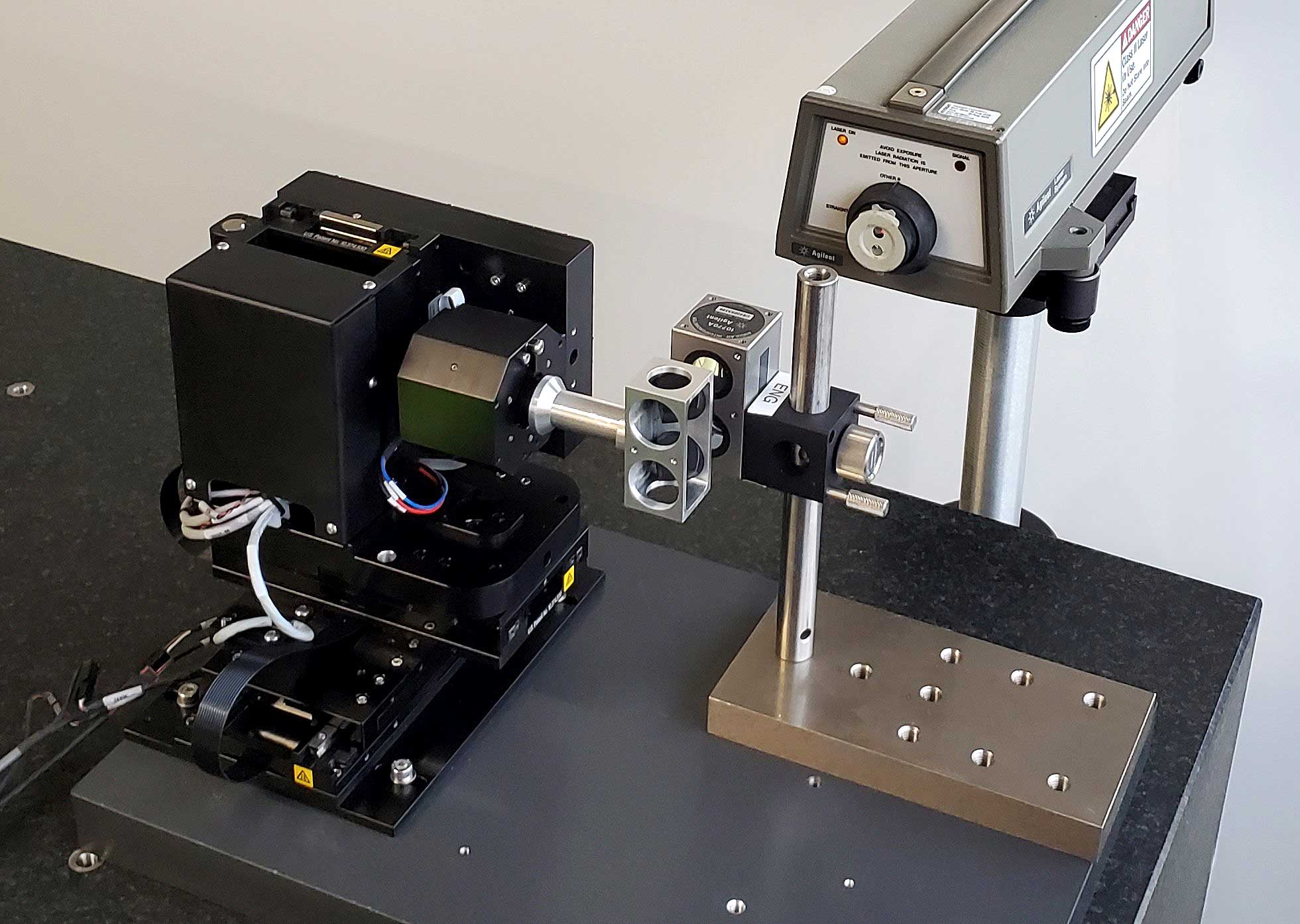

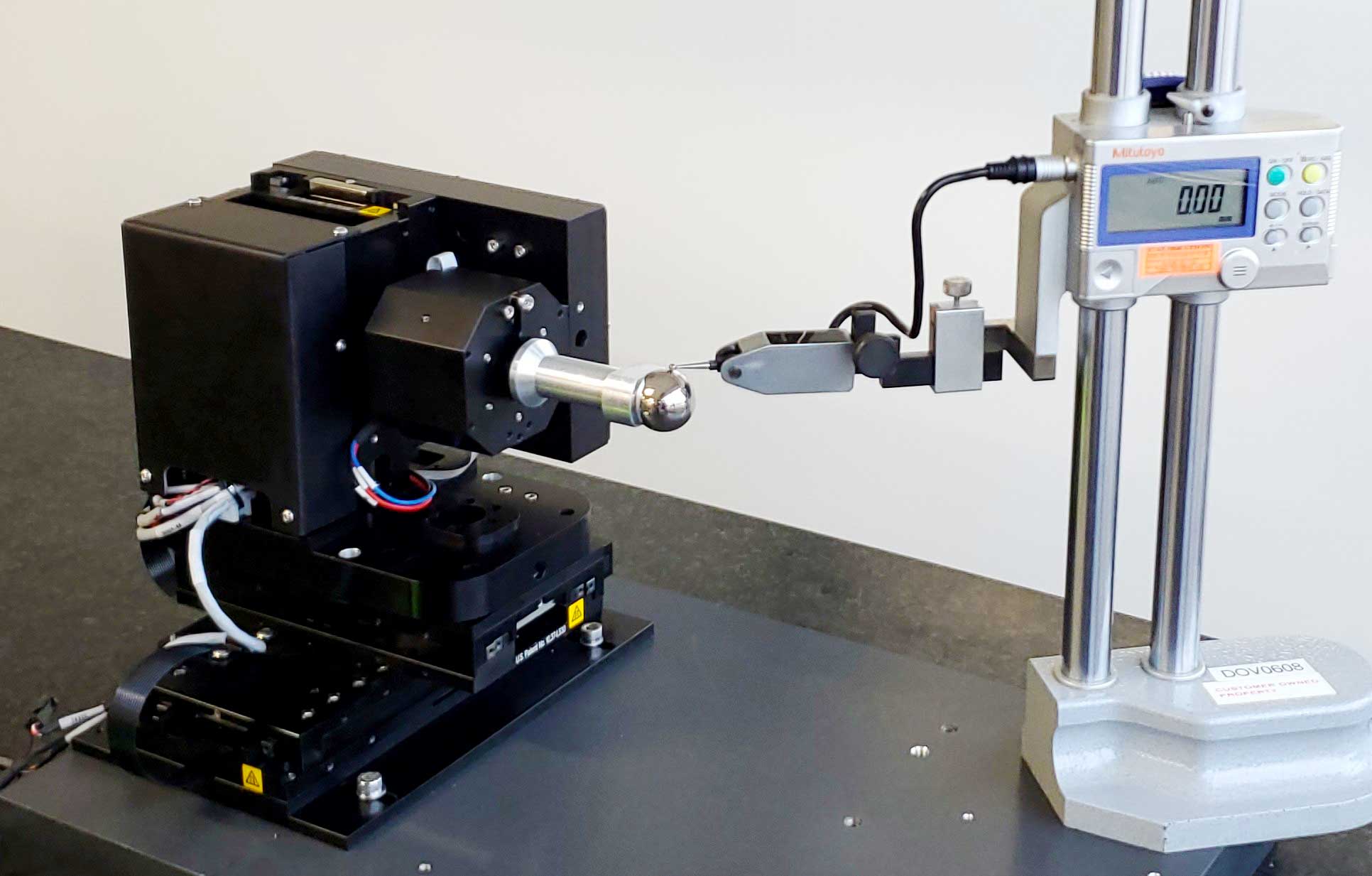

¹ Testing performed at the customer tool point using a linear and angular laser interferometer (10 kHz sample rate, 1 nm and 1.7 micro-degree resolution).

²Repeatability reflects short-term performance (≤ 20 s). Over longer durations, ambient temperature changes can cause slow position drift.

³ For large linear moves (greater than 2 mm), repeatability is <±150 nm

Description

Whether the components to be aligned are single mode fiber pairs, GRIN collimators, optical waveguides, or linear fiber arrays, the 6DOF-DD L/R assures fast, accurate, and highly repeatable alignment. Unlike designs using steppers, ballscrews, worm gears, or hexapods, the direct-drive technology of the 6DOF-DD L/R supports very fine circular dither motions, which dramatically reduce the time to peak optical power coupling. “The Gradient of the Log of the Gaussian is Linear”! All twelve axes can be quickly programmed using our Motion Synergy™ API, including our Virtual Rotation Point, and a user-friendly GUI. The 6DOF-DD L/R also supports our BeamFind detector, which speeds up first light acquisition.
